Audi dashboard guide
Audi warning lights explained
An Audi warning light is a dashboard alert that identifies the system and urgency to investigate, not the part to replace. Use the colour, exact message, driving behaviour and operating conditions to decide whether to stop safely or arrange diagnosis.
First decide the urgency
Red warnings, flashing warnings, rising temperature, loss of oil pressure, heavy steering or a change in braking can require a safe stop. A steady amber warning usually means the car needs diagnosis soon, but the way the Audi is driving still matters. For a temperature or coolant event, follow the Audi overheating guide.
Do not clear the warning before the fault memory, freeze-frame data and operating conditions are recorded. That evidence often separates the root cause from a secondary message. When the warning is only one clue among noises, vibration, starting or performance changes, use the Audi problems guide to organise the full symptom pattern. The Audi Guides library brings the permanent warning, overheating, problem and cost resources together. When the Audi needs vehicle-specific testing, the Audi diagnostic service explains the workshop investigation and approval process.
Visual triage
Colour sets priority
The exact symbol identifies the system. Colour and behaviour set the first response. A red or flashing warning paired with a physical change deserves more caution than a steady amber message with normal driving behaviour.
Three warning states
Read from the centre outward. Stop conditions are placed closest to the driver because they require the fastest decision.
Read the complete displayA red symbol can indicate a system that needs immediate protection, while amber usually requests diagnosis. The same symbol may be paired with more specific text such as switch off engine, drive system fault, limited function or workshop. That wording changes the response and should appear in the dashboard photograph.
Let symptoms raise priorityA steady amber lamp does not overrule rising temperature, smoke, severe vibration, a soft brake pedal, heavy steering or a sudden loss of power. If the car no longer feels controlled or mechanically normal, stop safely and describe the change before deciding whether it should move.
Before switching off

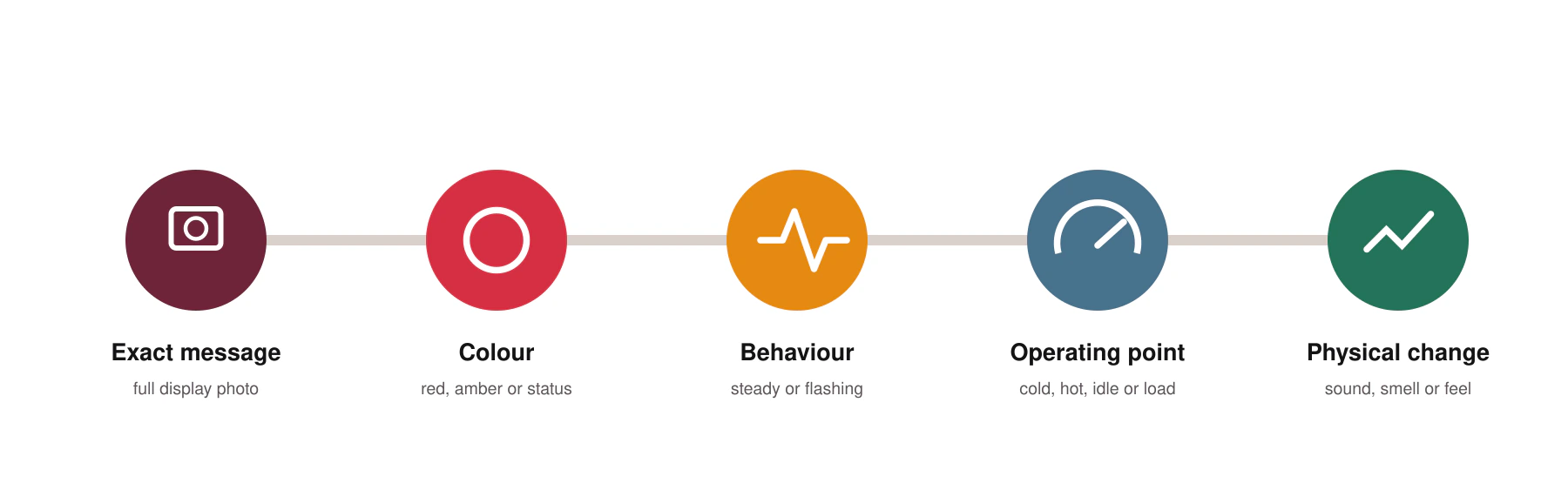

Capture five observations
A complete warning brief is more useful than a cropped symbol. Record the conditions that surrounded the warning while they are still fresh.
The dashboard evidence sequence
Move from what the car displayed to what the driver felt. Each observation narrows the diagnostic path.
Operating point mattersA fault that appears only cold, only hot, at idle, during acceleration or after a long traffic queue gives the technician a condition to recreate. Add the outside temperature and recent journey pattern when they are relevant, especially for cooling, charging and diesel-emissions messages.
Recent work mattersMention battery replacement, wheel or brake work, engine repairs, coolant top-ups, jump starting or a recent impact. This does not prove the cause, but it helps organise connector, adaptation, wiring and plausibility checks before the scan result is interpreted.
Symbol atlas
Common warning families
Dashboard graphics can vary by model generation and virtual-cockpit theme. Treat these as system families, then use the exact text shown by your Audi for the specific meaning.

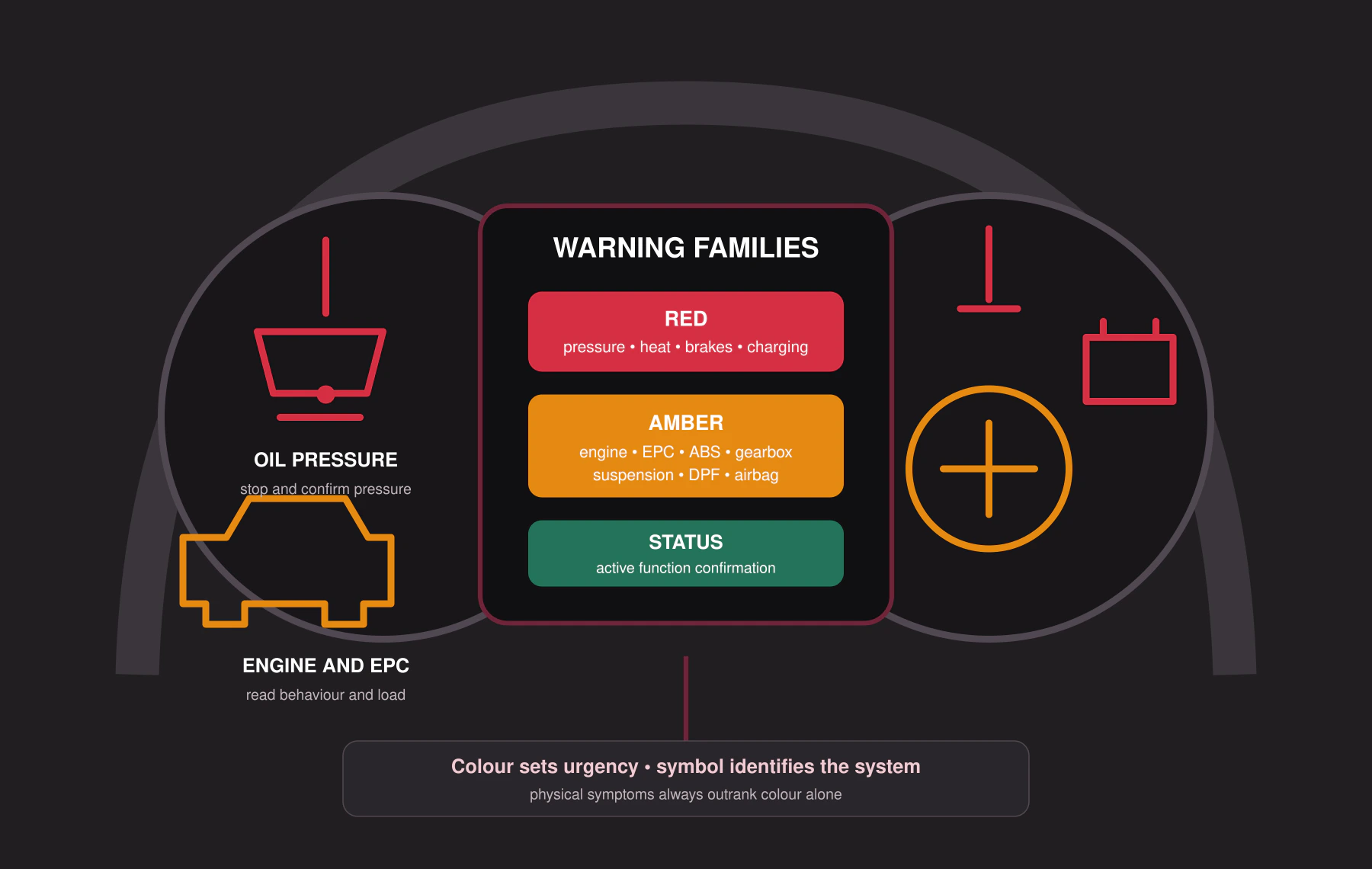

Dashboard symbol map
The display groups common warnings by urgency while the surrounding symbols identify the affected system family.
Interactive guide
Dashboard triage console
Select what you can see and feel. The result is guidance for the next step, not a diagnosis. If the car has a clear loss of oil pressure, overheating, braking change, smoke or an unsafe steering change, stop safely.
Record the warning and arrange testing
A steady amber warning with normal driving behaviour usually allows a cautious journey for diagnosis. Photograph the full display and note when the warning appeared.
Decision path
When to stop safely
The warning light is one input. Combine it with what the car is doing. The safest next action changes when temperature, pressure, braking, steering or smoke is involved.

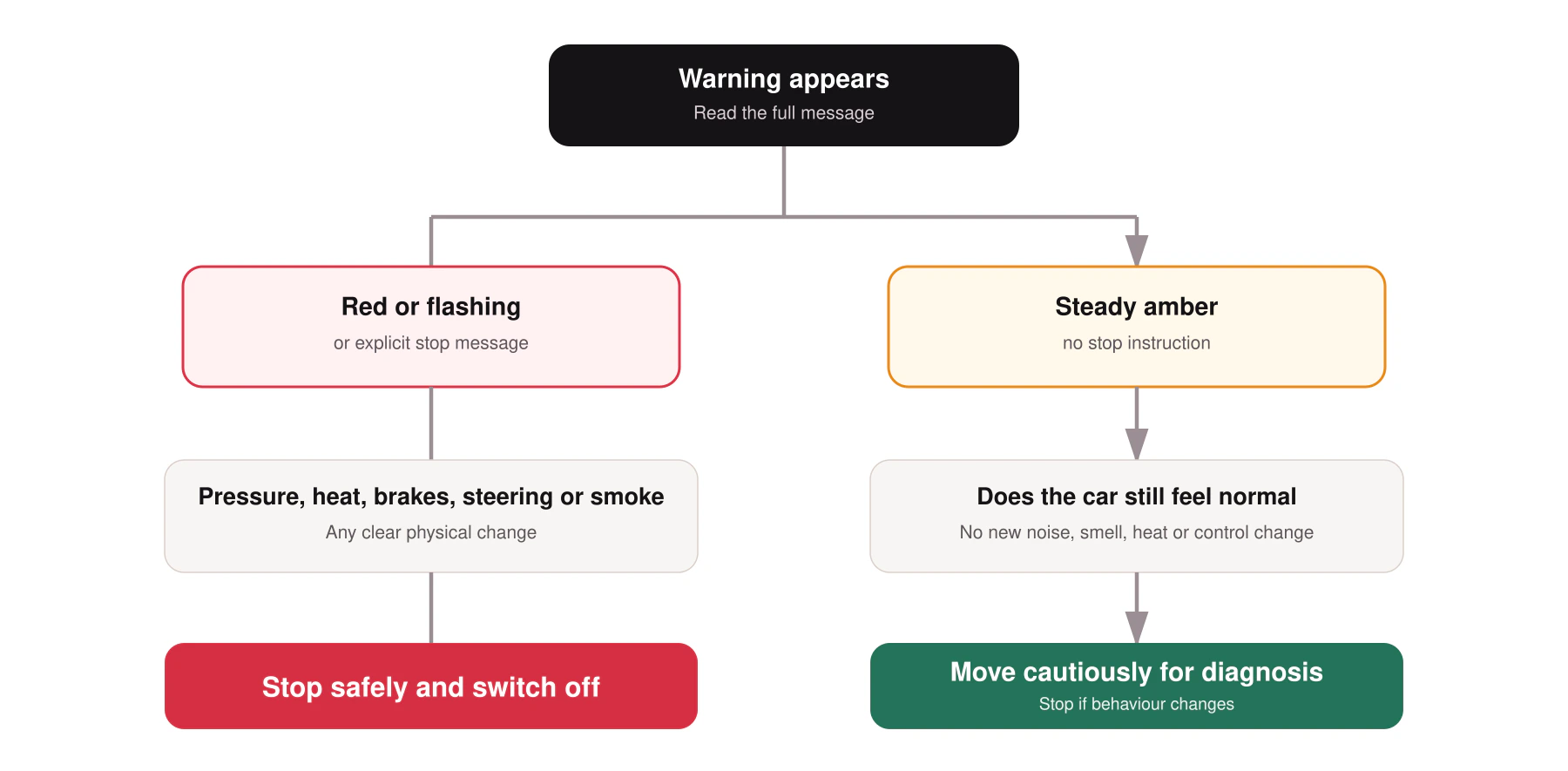

Stop or continue decision tree
Follow the arrows from the warning behaviour to the physical condition of the car.
Stop without creating another hazardReduce load, use the indicators, move away from live traffic when possible and choose a level, visible place. Do not continue solely to reach a preferred workshop if temperature is rising, lubrication pressure is lost, smoke is developing or braking and steering behaviour has changed.
Do not erase the evidenceOnce safely stopped, photograph the full display and note the conditions. Avoid clearing codes with a generic reader. If the warning relates to heat or pressure, repeated restarting can remove the message temporarily while exposing the vehicle to the same unsafe condition again.
Red warning family
Oil pressure is not oil level
An oil-level reminder asks for the level to be checked correctly. An oil-pressure warning concerns the oil circuit’s ability to maintain pressure through the engine. The two can appear similar on a quick glance, but their risk is not the same.
When an oil-pressure warning appears, avoid assuming that adding oil will solve it. The level must be verified, but diagnosis may also involve the pressure switch or sensor, wiring, oil condition, pickup restriction, pump operation, filter condition and internal clearances.
- Read the exact dashboard wording before switching off.
- Check the level only on suitable ground and by the correct procedure.
- Confirm pressure mechanically when the warning and evidence require it.

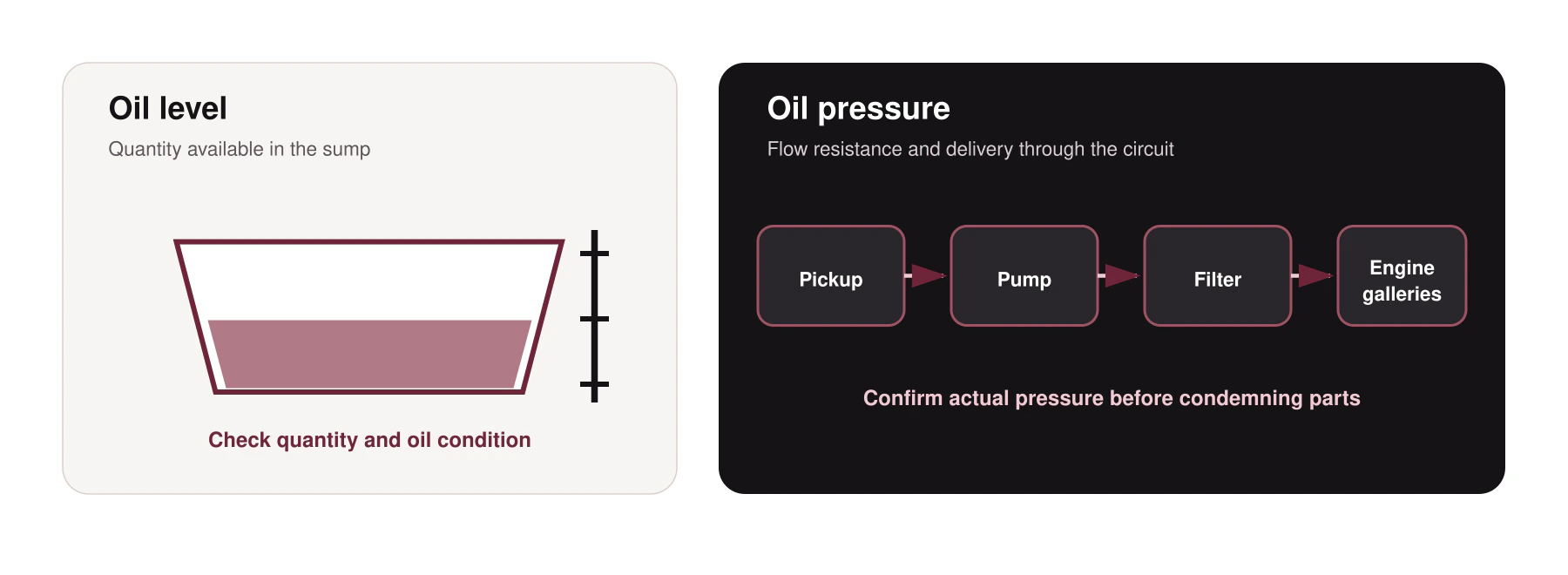

Level and pressure take different paths
Level describes how much oil is available. Pressure describes how effectively it is moving through the lubrication circuit.
Level is a quantity checkThe correct reading depends on the model, ground level, engine temperature and the procedure used by the vehicle. Overfilling is not a solution. Oil condition, dilution and the correct specification also matter because the available quantity does not describe how the circuit behaves under load.

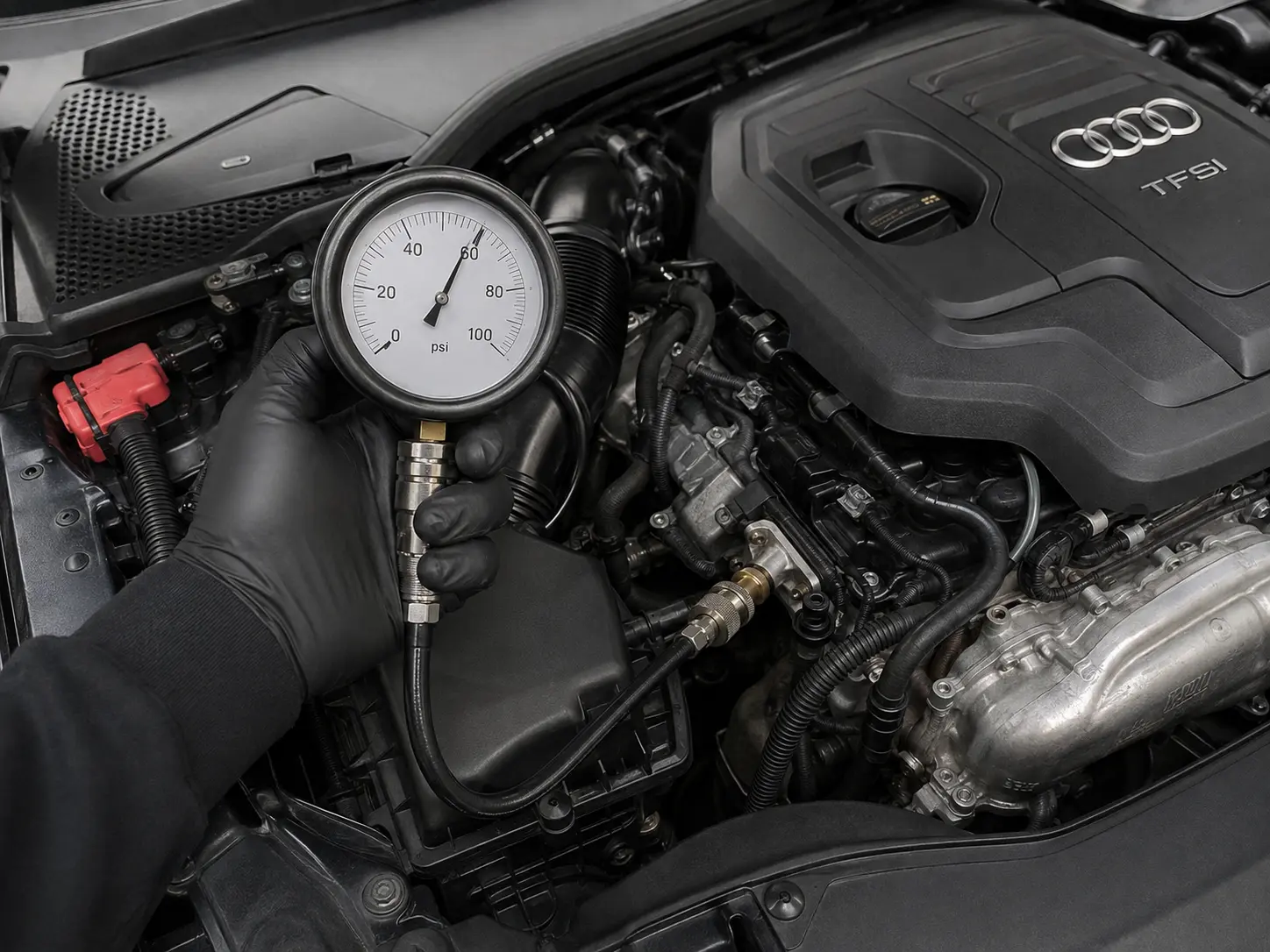

Pressure needs proofA mechanical gauge or another suitable measurement confirms whether the warning matches actual pressure. The result is then compared at the relevant temperature and engine speed before attention turns to the sensor circuit, pickup, pump, filter or internal engine condition.
Temperature warning family
Coolant needs a cold check
A coolant warning may relate to temperature, coolant level, circulation or an electrical input. If the engine is hot, do not open a pressurised expansion tank. Allow the system to cool and check for evidence such as leakage, residue, fan behaviour, hose temperature difference or a level that has changed.
A pressure test can help locate an external leak, but it does not by itself prove circulation, thermostat control, water-pump performance, radiator efficiency or temperature-sensor accuracy. The warning context and live temperature data should guide the test plan.
Useful observation
Note whether the warning appeared in traffic, at motorway speed, after a cold start or immediately after a coolant top-up.

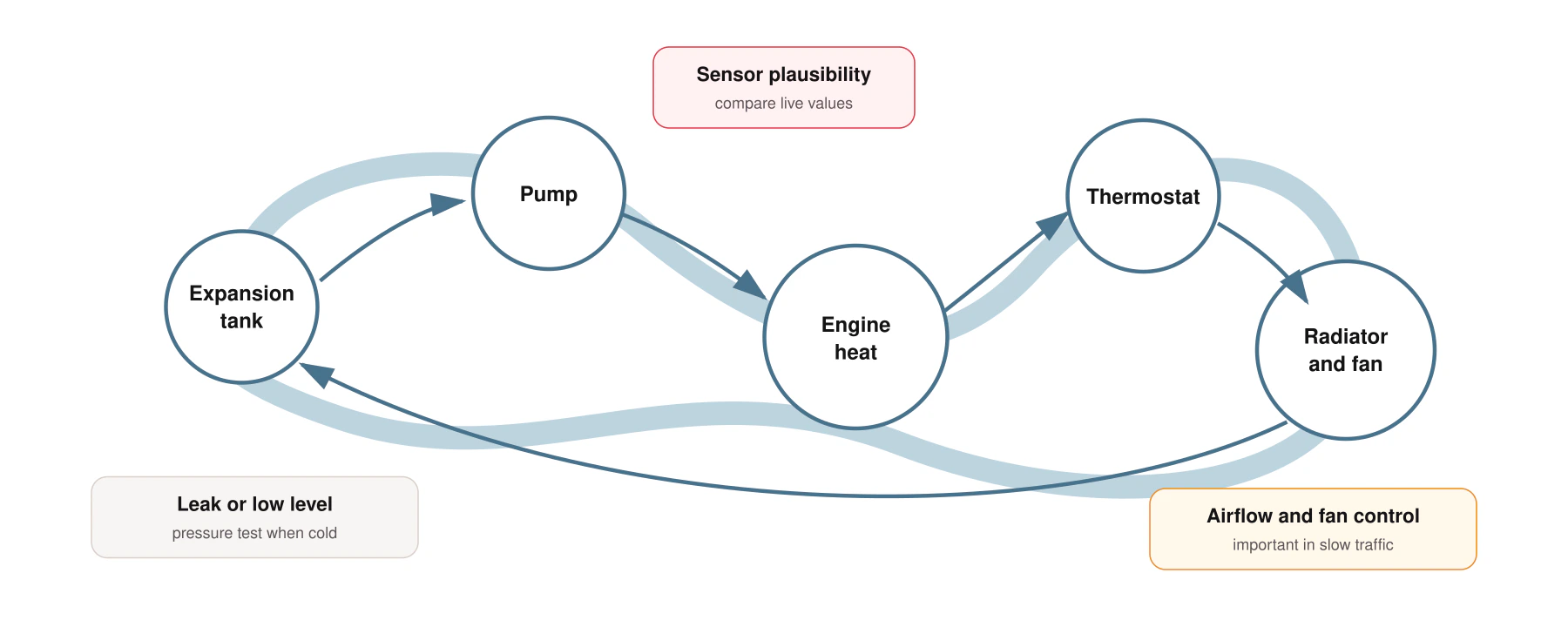

Cooling circuit and warning clues
Temperature depends on flow through the complete circuit. A leak is only one possible interruption.

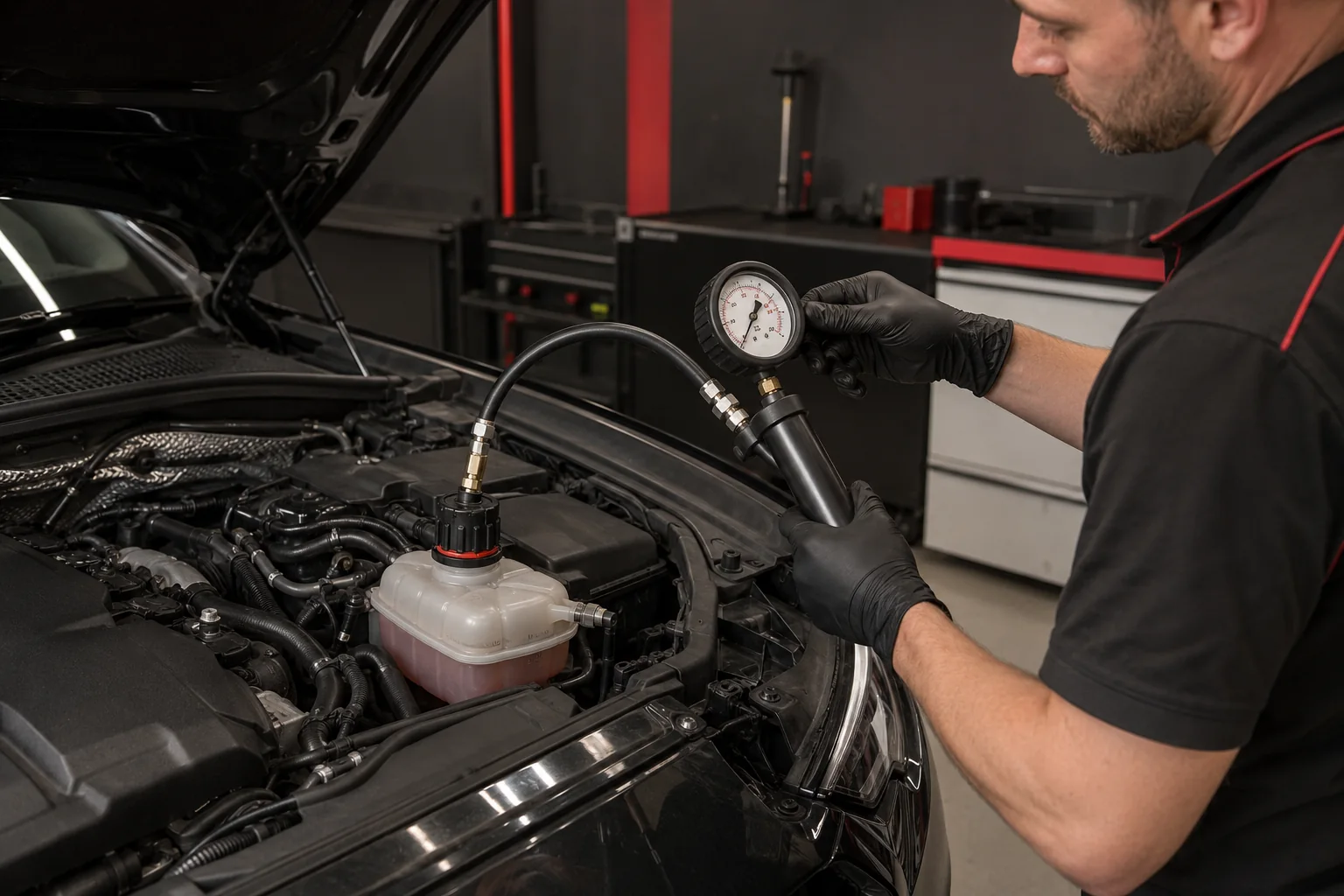

A cold pressure test finds only part of the storyIt can reveal external leakage and pressure loss, but circulation can still be affected by a thermostat, pump, trapped air, restricted radiator or control problem. Hose temperatures and live sensor values help show where heat is or is not moving.
Traffic and road speed separate cluesOverheating mainly in slow traffic raises questions about airflow and fan control. A warning under sustained load can shift attention toward coolant flow, pressure retention and heat rejection. The pattern guides testing, but it does not replace inspection.
Engine control
EPC and engine warnings
EPC means electronic power control. The warning can appear when the control system cannot reconcile the driver’s torque request with throttle, engine, brake or transmission inputs. A check-engine warning covers a wider set of combustion, air, fuel, boost and emissions faults.

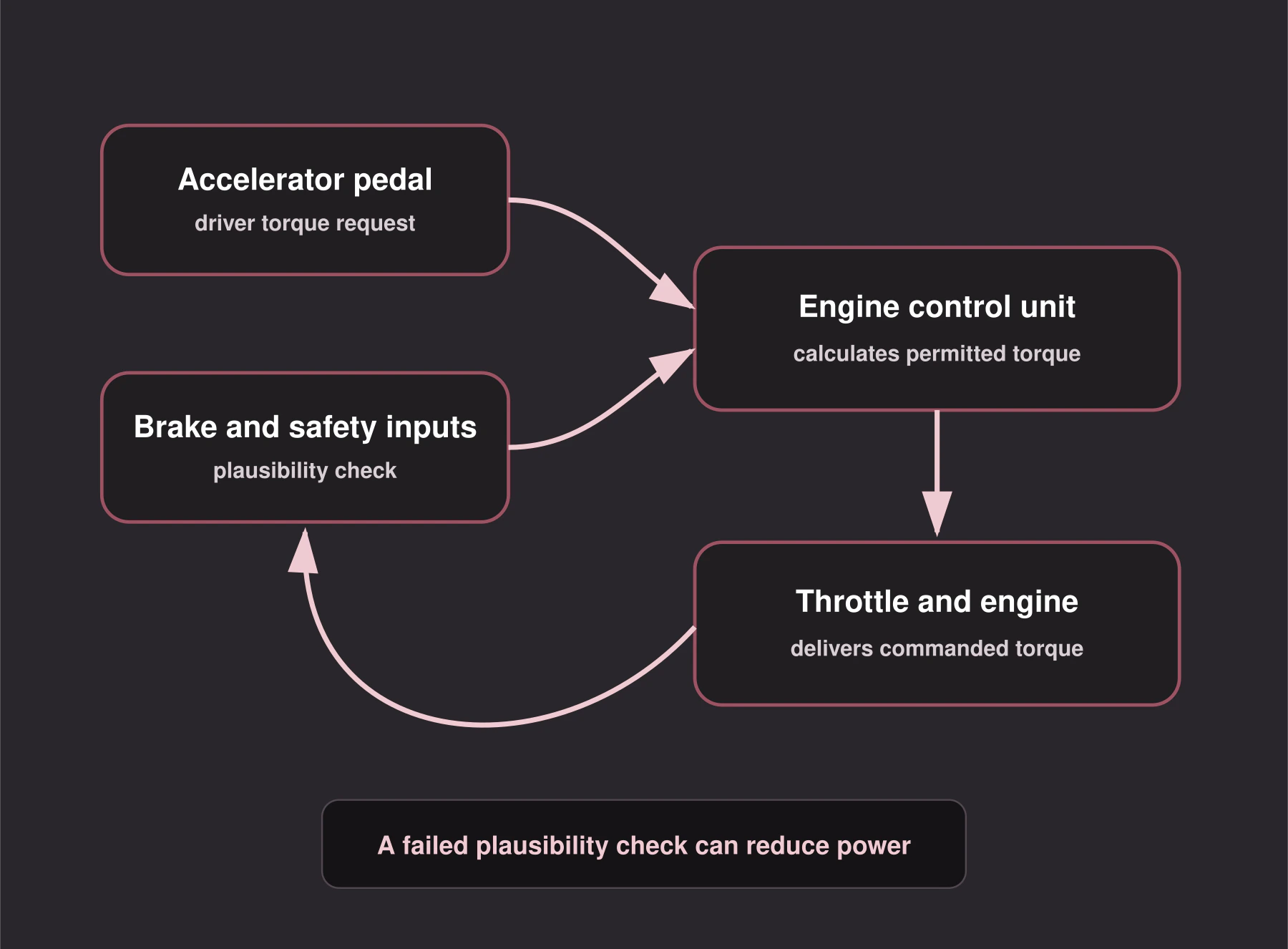

EPC control loop
The system compares a request with sensor feedback before it commands engine torque.
EPC is a control relationshipThe engine controller must agree with accelerator, throttle, brake and torque inputs before it delivers the requested output. When one signal becomes implausible, the system may limit power even though the engine can still run, which is why the lamp alone cannot name a component.
Test under the condition that triggers itA warning that appears only under boost, after heat soak or during initial acceleration should be investigated with those conditions in mind. Freeze-frame data and a controlled road test can connect the stored fault with airflow, pressure, voltage or signal behaviour.
Do not replace parts from the lamp
EPC with reduced power may point toward throttle or boost control, but the same driver complaint can also be produced by an air leak, sensor plausibility fault, fuel-pressure issue, misfire, voltage problem or wiring defect. The stored code identifies a monitored condition, not automatically the failed part.
A flashing engine warning with rough running deserves particular caution because continued driving may create additional heat in the exhaust system. Record whether the engine is shaking, whether the warning flashes only under load and whether power returns after a restart.
The diagnostic route should compare fault memory, freeze-frame data and live values with a physical test. Depending on the evidence, that may include smoke testing the intake, checking charge-air pressure, measuring fuel supply, testing ignition components or inspecting wiring under load.
Useful message
Send the full dashboard photo together with the model, year, engine type and whether the warning appeared at idle, during acceleration or after a cold start.
Drivetrain control
Gearbox warning path
A transmission warning can describe temperature, pressure, ratio monitoring, selector input, clutch adaptation, communication or electrical supply. Record how the vehicle engages and shifts instead of relying only on the warning text.

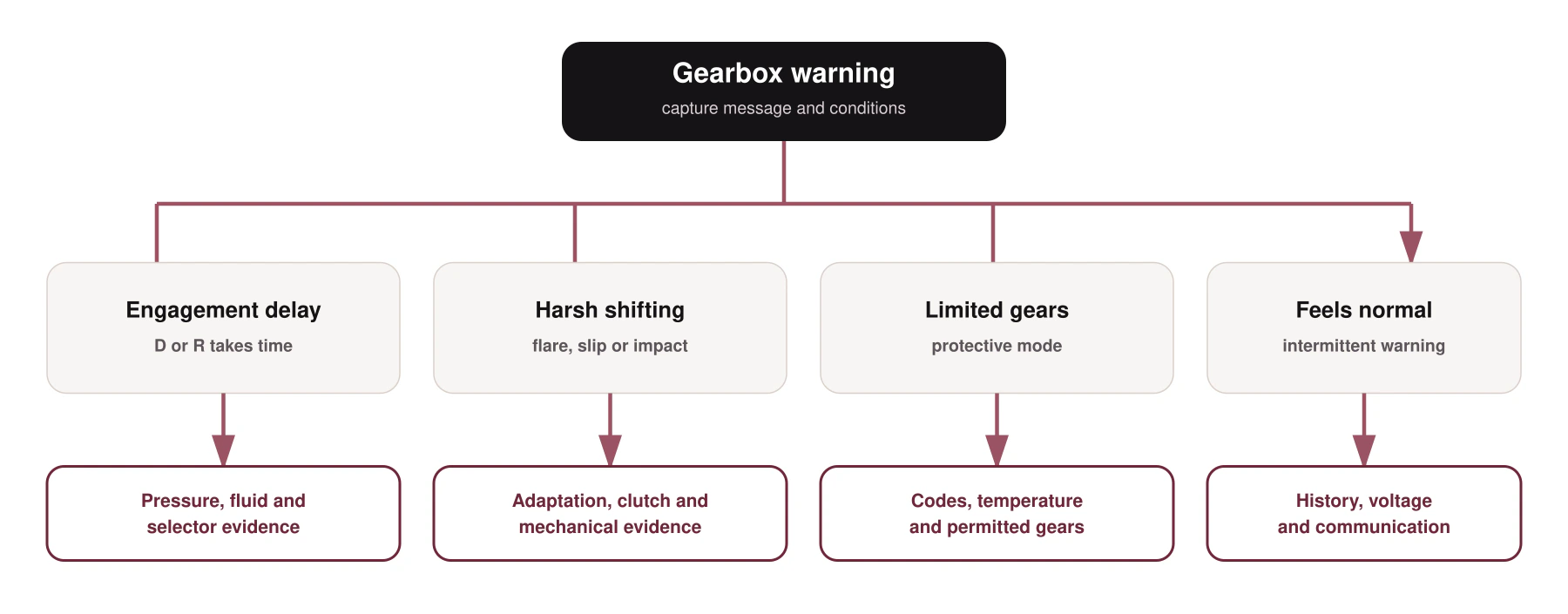

From warning to test plan
The driving symptom determines which evidence deserves priority.
For focused gearbox diagnosis, see Audi gearbox repair and fault testing. The warning-light guide stays focused on triage and evidence.
Braking and chassis
One signal can affect several systems
ABS, ESC, steering assistance, tyre-pressure monitoring and driver-assistance functions may share wheel-speed or network information. Several lamps appearing together do not automatically mean several unrelated failures.

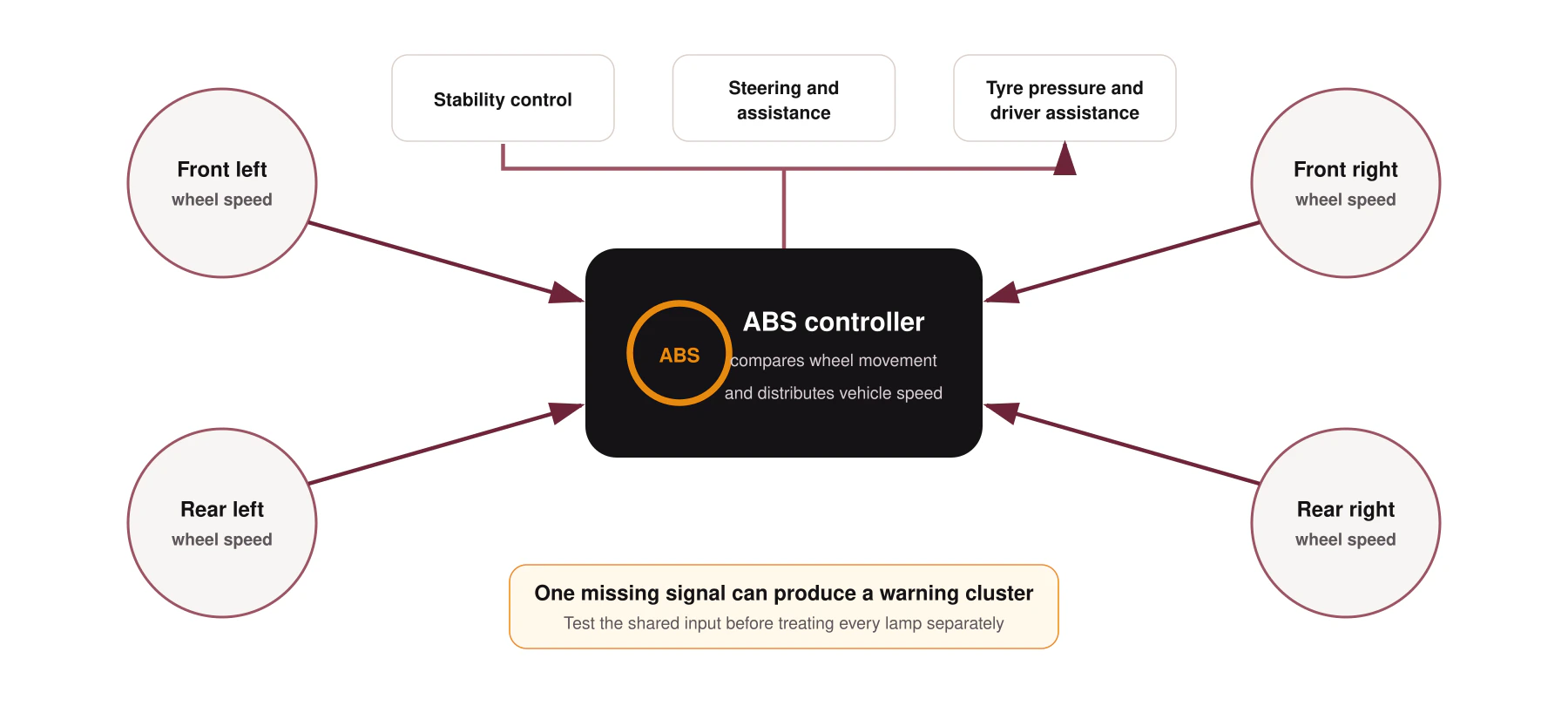

Wheel-speed data map
Four sensor signals feed one controller, which then shares calculated vehicle movement with other systems.
Compare all four wheel signalsA single sensor value that drops out, differs from the other wheels or becomes noisy at a certain speed can explain a warning cluster. The cause can involve the sensor, tone ring, bearing, connector, damaged wiring or an incorrect air gap rather than the controller itself.
Chassis faults need physical contextRecent tyre changes, wheel-bearing work, suspension repair, alignment or impact damage can be relevant. For ride-height warnings, measured vehicle height and linkage condition should agree with the scan data before calibration or parts replacement is considered.
A normal brake pedal does not make an ABS or ESC warning irrelevant, but a soft pedal, fluid warning, grinding noise or major braking change raises urgency. Dedicated testing is covered under Audi brake repair and Audi suspension repair.
Electrical supply
Voltage can create a warning cascade
Modern Audi control modules depend on stable supply voltage and reliable communication. A weak battery, charging fault, high-resistance connection or voltage drop can make several modules report faults at the same time. That does not mean voltage explains every warning, but it should be measured before unrelated parts are replaced.
A useful electrical assessment checks battery condition, voltage while cranking, charging output, ripple where relevant, loaded voltage drop and the timing of stored faults. The first code in time can be more informative than the longest list. If the warning display itself is intermittently blank, unreadable or physically failing, use the separate Audi instrument-cluster repair route.
- Note whether the warnings appeared after a slow start or battery event.
- Record flickering lights, reset clocks, fan changes or steering-assistance changes.
- Test supply and ground under load, not only open-circuit voltage.

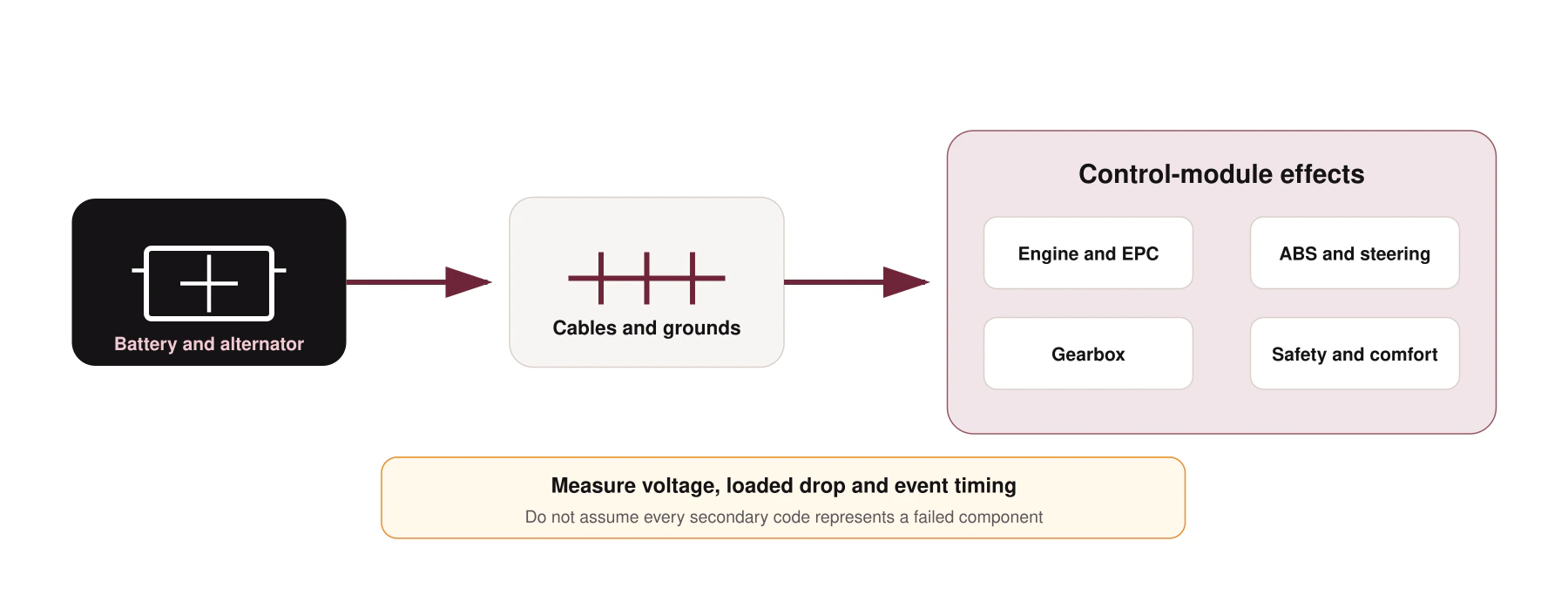

Supply voltage cascade
A single supply problem can be recorded by many modules because they all experience the same disturbance.
Starting voltage shows the event under loadA battery can show a plausible open-circuit voltage and still fall too far during cranking. The minimum value, starter behaviour and timing of module faults help determine whether warnings were created during the start rather than while the engine was already running.
Connections must be tested while carrying currentCorrosion, loose terminals and poor grounds can look acceptable without load. Measuring voltage drop across the positive and ground paths while the circuit is working shows whether the supply reaching the control modules is as stable as the voltage measured at the battery.
Network access

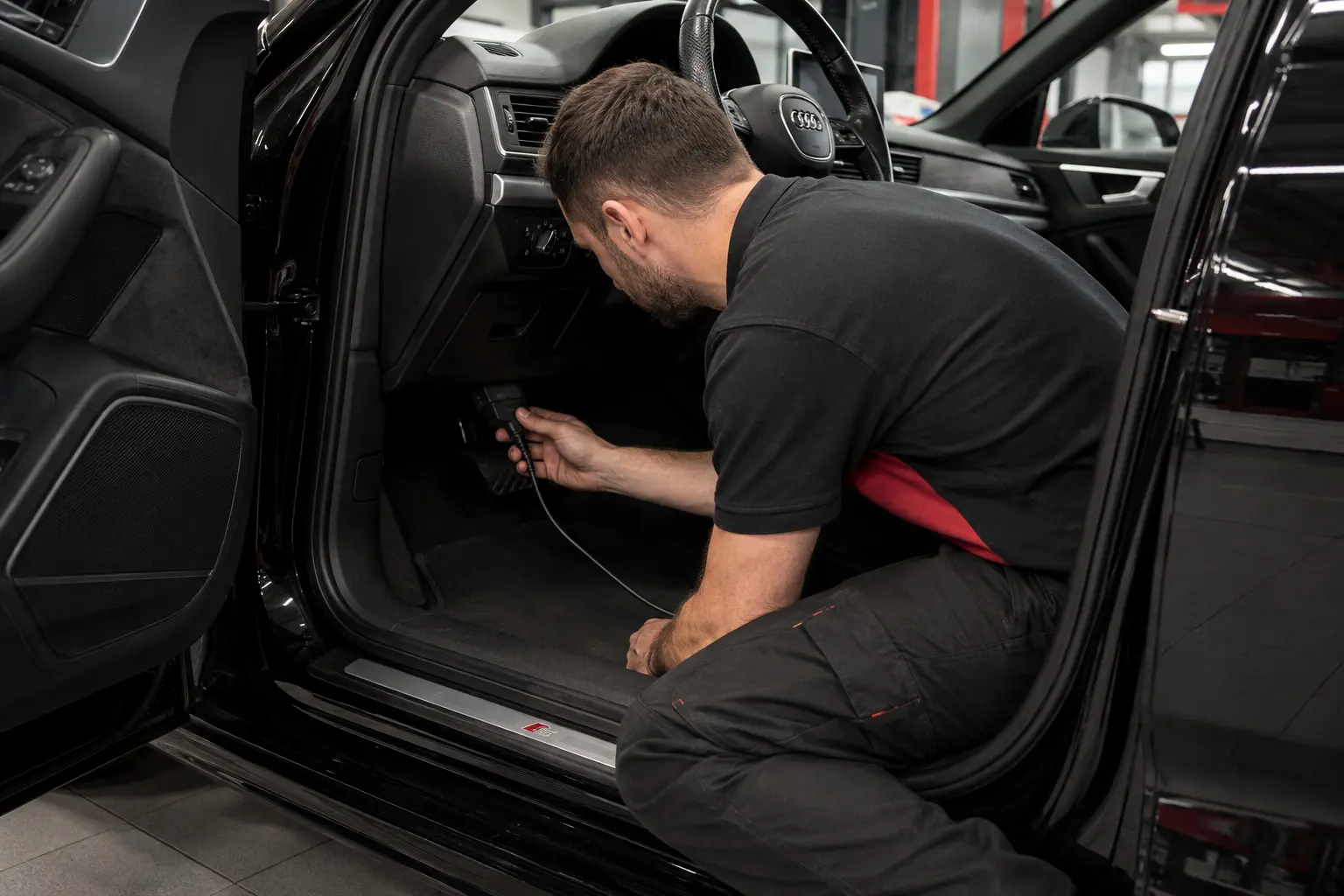

Connect before clearing faults
A full-vehicle scan should happen before fault memory is erased. The important evidence includes which modules communicate, which faults are current or historic, when they were recorded and whether several systems share the same voltage, network or sensor event.
The diagnostic connector is only the entry point. Reading one generic engine code is not the same as scanning the Audi’s engine, gearbox, ABS, steering, airbag, gateway, suspension and related modules. The warning message may be generated by one module using information received from another.
After the initial scan, testing should become narrower. Replacing every component named in fault text is not a diagnostic method.
Diesel warnings
TDI and emissions messages
A DPF, glow-plug or emissions message needs the driving pattern and operating temperature to be considered. Short-trip use, interrupted regeneration, air or boost faults, exhaust-temperature sensing and differential-pressure plausibility can overlap.

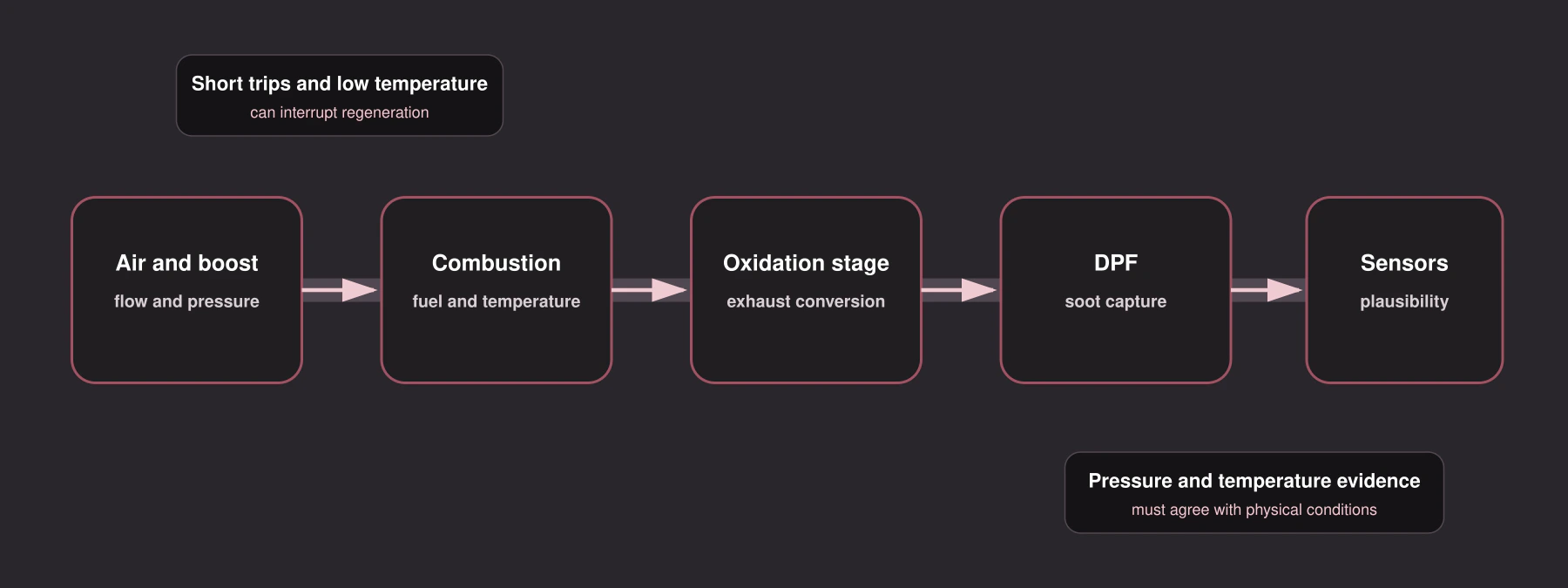

The TDI emissions path
A downstream warning may begin with an upstream air, combustion or temperature problem.
Regeneration depends on suitable conditionsCoolant and exhaust temperature, fuel level, driving load and the absence of blocking engine faults can all affect whether regeneration begins or completes. A repeated short-trip pattern is useful context, but it does not prove that driving style is the only cause.
Sensor values need plausibility checksDifferential pressure should make sense for the current exhaust flow, while temperature sensors should rise and fall in a believable sequence. Wiring faults, pressure-hose problems, boost leaks and combustion issues can distort the same values used to estimate filter loading.
A flashing glow-plug lamp or reduced-power event may involve more than the glow-plug circuit. Record when it appears, how the engine behaves and whether another engine or DPF message is present.
Diagnostic method
How a warning enters diagnosis
A professional diagnostic path becomes narrower as evidence improves. It starts with the complete complaint and ends when an electrical, mechanical, pressure, temperature or communication fault is proved.

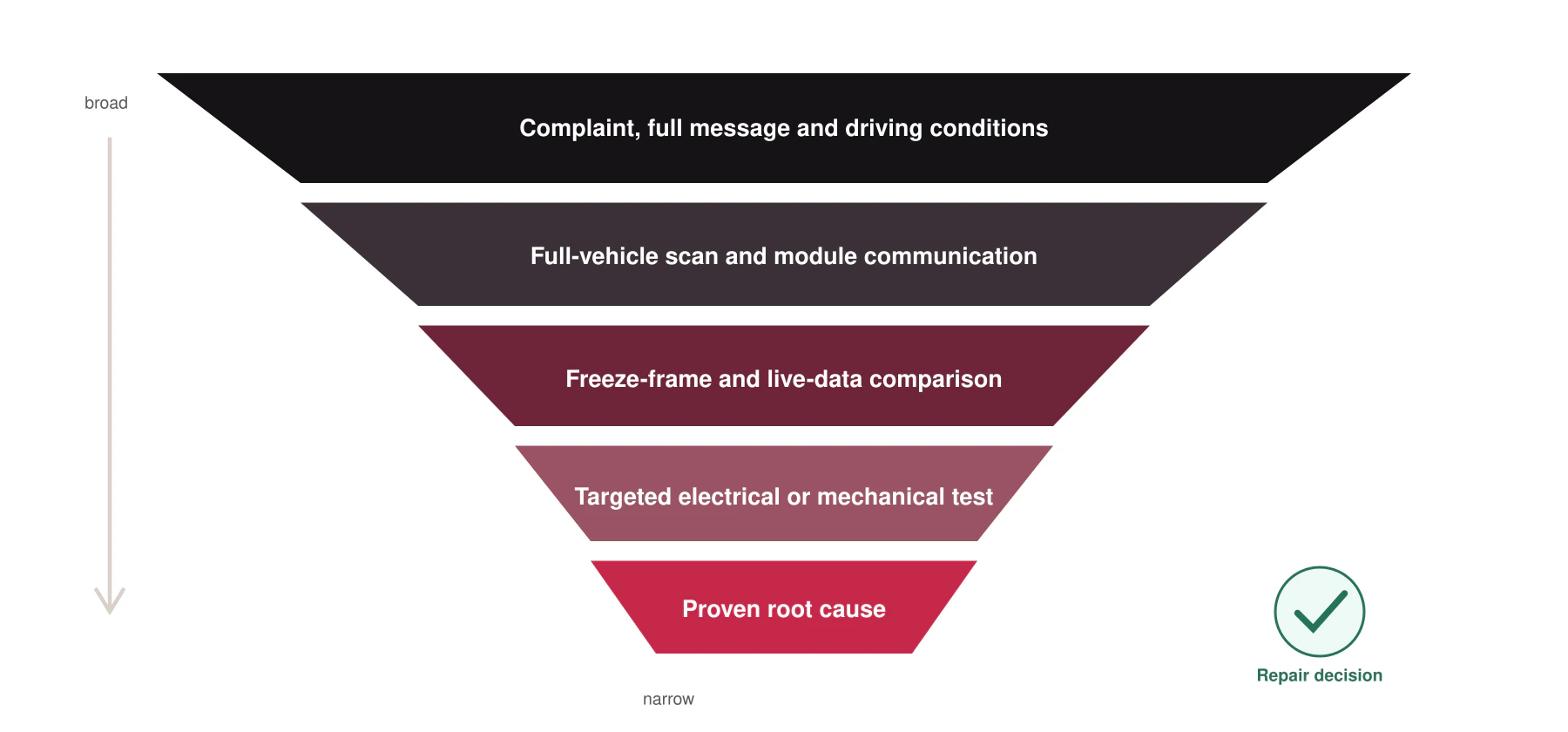

The diagnostic funnel
Each stage removes assumptions and reduces the number of plausible causes.
Freeze-frame data preserves the momentEngine speed, temperature, voltage, load and other values show the conditions under which the module recognised the fault. Those values help distinguish a cold-start event from a hot idle problem or a fault that appears only during acceleration.
Verification closes the loopAfter repair, the vehicle should be rescanned and tested under suitable conditions so the original monitor can run again. A lamp that stays off for a few seconds in the workshop is not equivalent to proving that the fault no longer returns.
Full scan first
A full scan shows whether the warning is isolated or part of a broader event. Module communication, supply voltage, fault timing and freeze-frame conditions help organise the evidence before components are disturbed.
When a code returns, live data can be compared with a known physical condition. If the value is implausible, the next step may be a wiring load test, pressure gauge, smoke test, temperature comparison, mechanical inspection or oscilloscope capture.
After the cause is repaired, the system should be cleared, rechecked and driven under suitable conditions. A cleared dashboard immediately after repair is not enough if the original monitoring condition has not run again.
For a system-wide assessment, see Audi diagnostic testing.
Evidence chain
What a complete diagnosis uses
No single screenshot, code or test can answer every warning. The strongest conclusion comes from evidence that agrees across several stages.

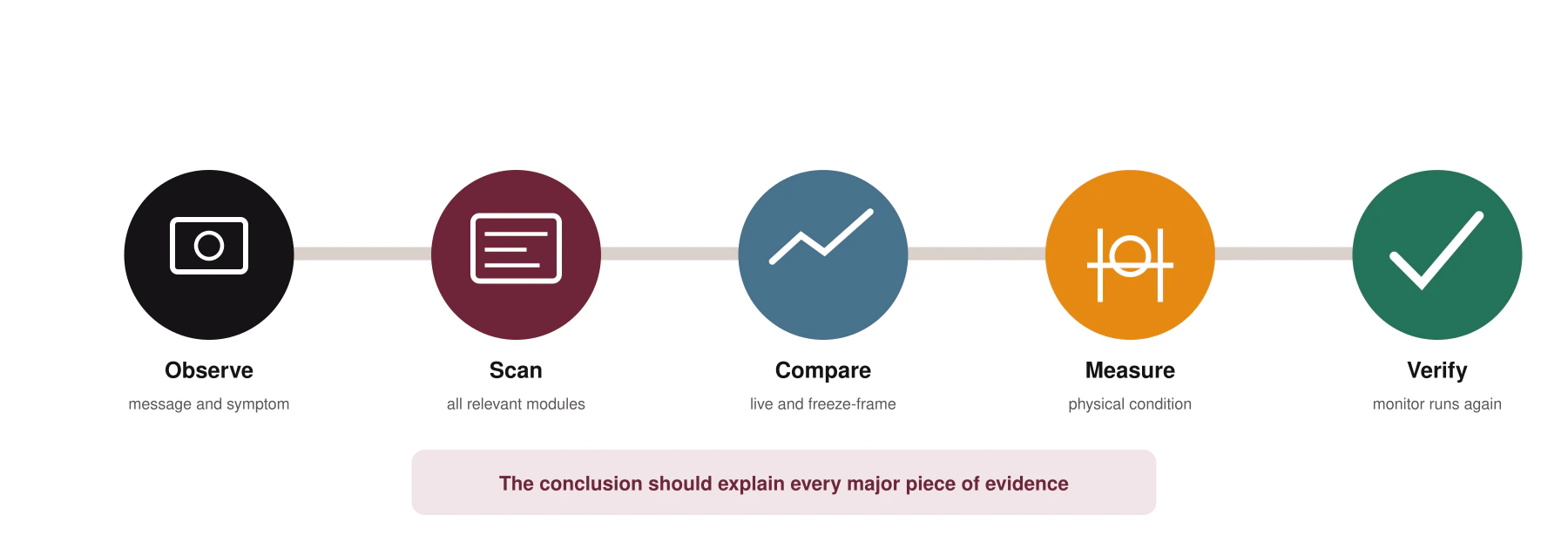

Five linked forms of evidence
Every link has a different job. Together they connect the driver’s complaint to a verified repair decision.
Quick reference
Warning diagnostic matrix
Use the matrix to organise the first conversation. It cannot replace the exact message or vehicle-specific diagnostic data.
| Warning family | Initial priority | Record immediately | Likely test direction |
|---|---|---|---|
| Oil pressure | Stop safely | Exact wording, oil level, noise, engine speed | Level and condition check, sensor circuit, mechanical pressure |
| Coolant temperature | Stop safely | Temperature display, steam, leak evidence, traffic or road speed | Cold pressure test, live temperature, circulation and fan control |
| Brake system | Assess control | Pedal feel, fluid message, noise, pulling and braking distance | Hydraulic and mechanical check before electronic assumptions |
| EPC or engine | Check soon | Steady or flashing, rough running, reduced power, load and temperature | Full scan, freeze-frame, air, fuel, ignition, boost and control inputs |
| Gearbox | Check soon | Engagement delay, harsh shift, slip, limited gears and temperature | Module data, pressure or clutch evidence, fluid and electrical supply |
| ABS or ESC | Check soon | Other chassis lamps, recent wheel work, braking or steering change | Wheel-speed comparison, sensor circuit, hub and network scan |
| Charging system | Assess quickly | Starting speed, flicker, multiple lamps and recent battery work | Battery, alternator, loaded voltage drop and fault timing |

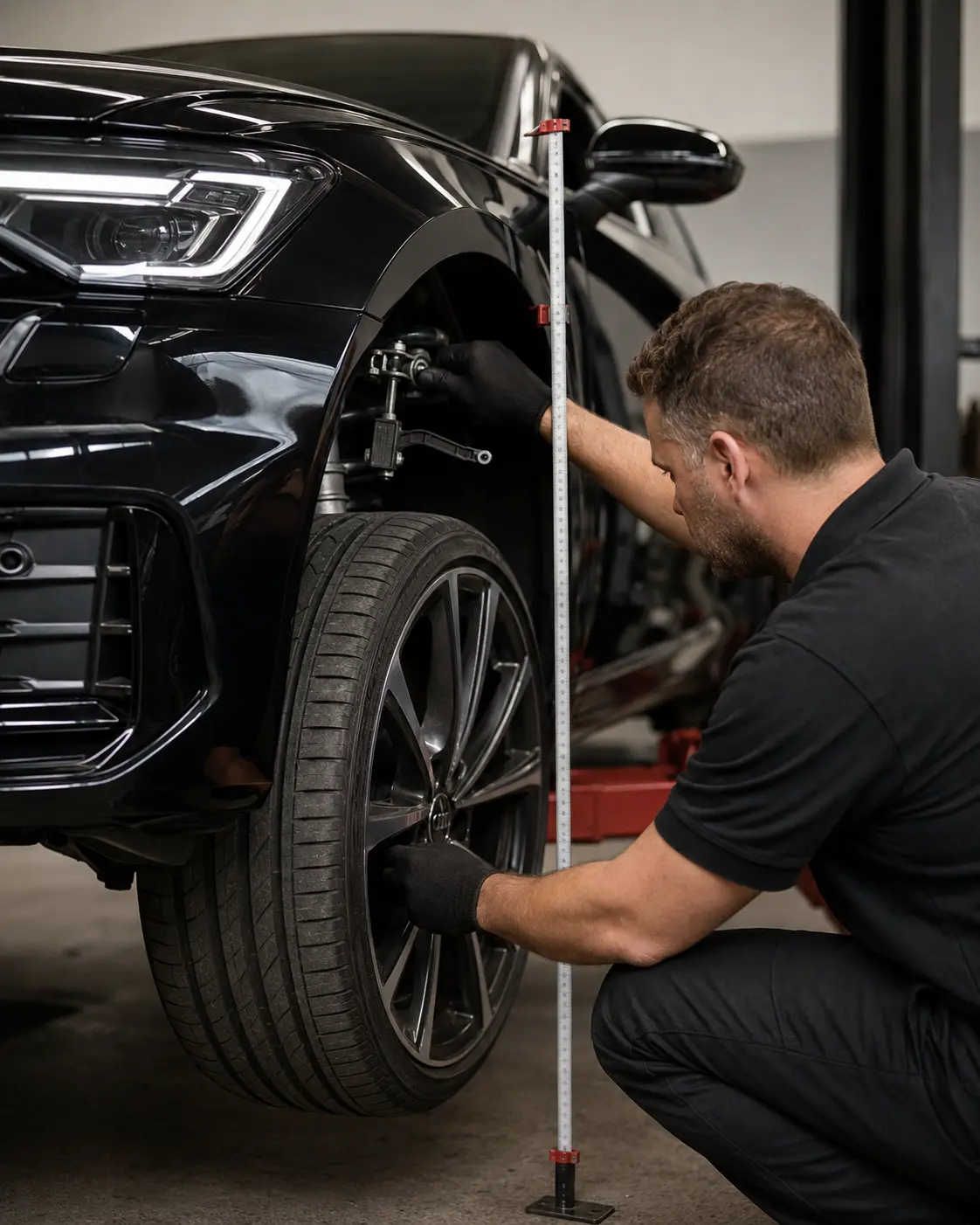

| Suspension | Check soon | Vehicle height, compressor activity, side-to-side difference and load | Height data, pressure supply, linkage, wiring and calibration |
| DPF or emissions | Check soon | Trip pattern, engine temperature, power loss and related messages | Soot and pressure data, exhaust temperature, air and boost plausibility |
| Status indicator | Information | Which function was selected and whether it operates normally | Usually no fault test unless behaviour or message indicates one |
Priority can increase when the Audi develops a physical symptom even if the dashboard colour is amber.
Use the matrix as a starting point
The same warning family can move between cautious diagnosis and a safe stop depending on the exact message and vehicle behaviour. For example, an amber engine warning with normal operation is different from a flashing warning with severe misfire, just as an ABS lamp with a firm brake pedal is different from a red brake warning with a hydraulic change.
Model generation, engine, gearbox and equipment also change which modules and sensors are present. A useful first assessment therefore combines the dashboard evidence with vehicle identification before the scan plan is chosen. This prevents a generic symbol description from being treated as a model-specific repair instruction.
Questions owners ask
Audi warning light questions
Can I drive with an amber Audi warning light
A steady amber warning with normal driving behaviour often allows a cautious journey for diagnosis, but the exact message matters. Stop if the warning begins flashing or the vehicle develops overheating, oil-pressure loss, smoke, severe vibration, braking change, unsafe steering or a major loss of power.
Does restarting the car fix the warning
A restart can remove a temporary display or end a protective mode, but it does not prove the underlying event has been resolved. Record the warning before switching off, then scan the relevant modules while the stored conditions are still available.
Why did several warning lights appear together
Several systems can share voltage, communication and sensor data. A wheel-speed problem may affect ABS, ESC and assistance functions. A supply-voltage disturbance may be recorded by multiple control modules. A full-vehicle scan helps identify the shared event.
Is the fault code the failed part
No. A code describes the condition a control module detected. The cause may be a component, wiring, connector, supply voltage, air or fluid leak, pressure problem, mechanical fault or incorrect signal from another module. Testing should prove the monitored condition.
What should I send before booking diagnosis
Send the Audi model, year, engine type, full dashboard photo, exact message, warning colour, steady or flashing behaviour, when it appears, how the car feels and any recent repair, battery or wheel work.
Can a weak battery cause EPC, ABS and gearbox warnings
Low or unstable voltage can create multiple warnings, especially during starting, but it should be measured rather than assumed. If supply and grounds test correctly, diagnosis continues into the individual systems and their shared data.
Should a DPF warning be forced to regenerate
Not automatically. The soot estimate, differential-pressure reading, exhaust temperature, driving pattern and any air, boost or engine fault should be assessed first. A regeneration attempt does not correct the reason normal regeneration was interrupted.
Why does the warning only appear when the engine is hot
Temperature can change resistance, pressure, clearances, fluid behaviour and electrical connections. Record how long the car had been driven, ambient conditions and whether the warning appears at idle, in traffic or under load. That pattern helps recreate the fault safely.
Prepare the warning brief
Send the complete message
A full dashboard photo and a short description of the conditions can prevent the first diagnostic conversation from starting with guesswork. Include what changed, not only which lamp appeared.
- Audi model, year and engine type
- Full dashboard photo and exact message
- Red, amber, green or white
- Steady, flashing or intermittent
- Cold, hot, idle, traffic or acceleration
- Noise, smell, vibration, power, braking or steering change
